Partially-Observed Planning from Pixels with JaxPlan

In this notebook, we use image segmentation to plan from pixels in JaxPlan. The pong domain is used as illustrative example.

State Inference using Image Segmentation from Pong Pixels

Install the required packages:

%pip install --quiet --upgrade pip
%pip install --quiet opencv-python pyRDDLGym rddlrepository pyRDDLgym-jax

Note: you may need to restart the kernel to use updated packages.
Note: you may need to restart the kernel to use updated packages.

Import the required packages:

import os
import warnings
warnings.filterwarnings("ignore", category=UserWarning)
import matplotlib.pyplot as plt
from IPython.display import Image
import cv2
import numpy as np

import pyRDDLGym
from pyRDDLGym.core.policy import RandomAgent
from pyRDDLGym.core.visualizer.movie import MovieGenerator
from pyRDDLGym_jax.core.planner import JaxBackpropPlanner, JaxOnlineController, load_config_from_string

We use image segmentation to identify the ball (x, y) coordinates and the paddle y-coordinate from the frame.

def segment_frame(img):
    img_rgb = np.array(img)

    # detect ball using red color channel
    r, g = img_rgb[:, :, 0].astype(int), img_rgb[:, :, 1].astype(int)
    red_mask = (r - g > 80) & (r > 150)
    red_u8 = red_mask.astype(np.uint8) * 255
    bx = by = bw = bh = np.nan
    for cnt in cv2.findContours(red_u8, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_SIMPLE)[0]:
        if cv2.contourArea(cnt) > 5:
            bx, by, bw, bh = cv2.boundingRect(cnt); break

    # detect paddle by counting black pixels per row
    gray = cv2.cvtColor(img_rgb, cv2.COLOR_RGB2GRAY)
    gray[red_mask] = 255
    row_count = cv2.threshold(gray, 50, 1, cv2.THRESH_BINARY_INV)[1].sum(axis=1)
    paddle_rows = np.where((row_count > 4) & (row_count < 10))[0]
    py = np.min(paddle_rows)
    ph = np.max(paddle_rows) - py

    # convert paddle start and end to board height by assuming symmetric borders
    border_start = np.argmax(row_count)
    board_height = img_rgb.shape[0] - 2 * border_start
    paddle_y = 1 - float((py - border_start) / board_height) - float(ph / board_height)
    ball_x = float((bx - border_start) / board_height)
    ball_y = 1 - float((by - border_start) / board_height)

    # visualize segmentation results
    px = img_rgb.shape[1] - border_start
    if not np.isnan(bx):
        cv2.rectangle(img_rgb, (bx, by), (bx + bw, by + bh), (0, 0, 255), 2)
    cv2.rectangle(img_rgb, (px, py), (px + 6, py + ph), (0, 255, 0), 2)

    return ball_x, ball_y, paddle_y, img_rgb

Let’s test this on some frames from the Pong environment:

# generate some frames from a random policy, compare segmentation state to true states
env = pyRDDLGym.make('Pong_arcade', '0')
agent = RandomAgent(env.action_space)
frames = []
state, _ = env.reset()
for step in range(18):
    ball_x, ball_y, paddle_y, img_rgb = segment_frame(env.render(False))
    print(f"pred ball_x: {ball_x:.2f} vs test {state['ball-x___b1']:.2f}, "
          f"pred ball_y: {ball_y:.2f} vs test {state['ball-y___b1']:.2f}, "
          f"pred paddle_y: {paddle_y:.2f} vs test {state['paddle-y']:.2f}")
    frames.append(img_rgb)
    action = agent.sample_action(state)
    state, *_ = env.step(action)
env.close()
plt.close('all')

# plot segmented frames
%matplotlib inline
fig, axs = plt.subplots(ncols=6, nrows=3, figsize=(12, 6))
for fr, ax in zip(frames, axs.flatten()):
    ax.imshow(fr); ax.axis('off')
plt.tight_layout(); plt.show()

pred ball_x: 0.49 vs test 0.50, pred ball_y: 0.52 vs test 0.50, pred paddle_y: 0.39 vs test 0.40
pred ball_x: 0.52 vs test 0.53, pred ball_y: 0.53 vs test 0.51, pred paddle_y: 0.44 vs test 0.44
pred ball_x: 0.56 vs test 0.56, pred ball_y: 0.54 vs test 0.52, pred paddle_y: 0.48 vs test 0.48
pred ball_x: 0.59 vs test 0.59, pred ball_y: 0.55 vs test 0.53, pred paddle_y: 0.44 vs test 0.44
pred ball_x: 0.62 vs test 0.62, pred ball_y: 0.56 vs test 0.54, pred paddle_y: 0.44 vs test 0.44
pred ball_x: 0.64 vs test 0.65, pred ball_y: 0.57 vs test 0.55, pred paddle_y: 0.48 vs test 0.48
pred ball_x: 0.68 vs test 0.68, pred ball_y: 0.58 vs test 0.56, pred paddle_y: 0.48 vs test 0.48
pred ball_x: 0.71 vs test 0.71, pred ball_y: 0.59 vs test 0.57, pred paddle_y: 0.52 vs test 0.52
pred ball_x: 0.74 vs test 0.74, pred ball_y: 0.60 vs test 0.58, pred paddle_y: 0.48 vs test 0.48
pred ball_x: 0.77 vs test 0.77, pred ball_y: 0.61 vs test 0.59, pred paddle_y: 0.52 vs test 0.52
pred ball_x: 0.80 vs test 0.80, pred ball_y: 0.62 vs test 0.60, pred paddle_y: 0.48 vs test 0.48
pred ball_x: 0.83 vs test 0.83, pred ball_y: 0.63 vs test 0.61, pred paddle_y: 0.44 vs test 0.44
pred ball_x: 0.86 vs test 0.86, pred ball_y: 0.64 vs test 0.62, pred paddle_y: 0.48 vs test 0.48
pred ball_x: 0.89 vs test 0.89, pred ball_y: 0.65 vs test 0.63, pred paddle_y: 0.44 vs test 0.44
pred ball_x: 0.92 vs test 0.92, pred ball_y: 0.66 vs test 0.64, pred paddle_y: 0.39 vs test 0.40
pred ball_x: 0.95 vs test 0.95, pred ball_y: 0.67 vs test 0.65, pred paddle_y: 0.39 vs test 0.40
pred ball_x: 0.98 vs test 0.98, pred ball_y: 0.68 vs test 0.66, pred paddle_y: 0.44 vs test 0.44
pred ball_x: nan vs test 1.01, pred ball_y: nan vs test 0.67, pred paddle_y: 0.48 vs test 0.48

We also need to infer the ball velocities. To do this, we need two consecutive frames (we also vectorize the state for the planner):

def extract_state(prev_obs, next_obs):
    ball_x1, ball_y1, *_ = segment_frame(prev_obs)
    ball_x2, ball_y2, paddle_y, _ = segment_frame(next_obs)
    return {
        'ball-x': np.array([ball_x2]),
        'ball-y': np.array([ball_y2]),
        'vel-x': np.array([ball_x2 - ball_x1]),
        'vel-y': np.array([ball_y2 - ball_y1]),
        'paddle-y': paddle_y
    }

Control from Pixels with JaxPlan

Let’s initialize and run the MPC controller in JaxPlan. We map pairs of consecutive images to states and run JaxPlan from these inferred states:

config_str = """
[Compiler]
print_warnings=False
[Planner]
method='JaxStraightLinePlan'
optimizer_kwargs={'learning_rate': 0.01}
batch_size_train=16
batch_size_test=16
rollout_horizon=40
[Optimize]
key=42
epochs=200
"""
planner_args, _, train_args = load_config_from_string(config_str)
planner = JaxBackpropPlanner(rddl=env.model, **planner_args)
agent = JaxOnlineController(planner, print_summary=False, print_progress=False, **train_args)

Let’s run the controller:

# set visualizer
if not os.path.exists('frames'):
    os.makedirs('frames')
env = pyRDDLGym.make('Pong_arcade', '0', vectorized=True)
recorder = MovieGenerator("frames", "pong_pomdp", max_frames=150)
env.set_visualizer(viz=None, movie_gen=recorder)

# run control
env.reset(seed=0)
prev_obs = env.render()
for step in range(150):
    obs = env.render()
    state_pred = extract_state(prev_obs, obs)
    action = agent.sample_action(state_pred)
    env.step(action)
    prev_obs = obs
env.close()
plt.close('all')

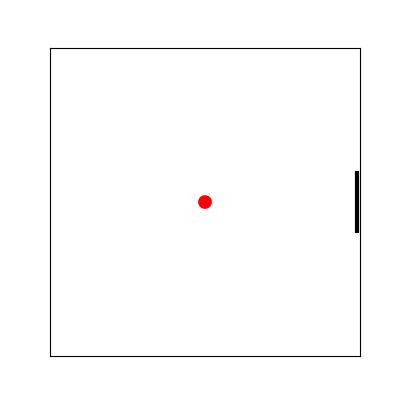

Image(filename='frames/pong_pomdp_0.gif')
