# Symbolic Toolset for pyRDDLGym

In this part, we provide explanations on the symbolic toolkits that you can use with pyRDDLGym. Specifically, we provide the following:

Symbolic compilation of CPFs (conditional probability functions) in XADD (eXtended Algebraic Decision Diagram)

Dynamic Bayes Net (DBN) visualization, allowing dependence analysis

Symbolic Dynamic Programming (SDP):

These functionalities are available through the pyRDDLGym-symbolic package.

## Installation

```
# Create and activate a new conda environment
conda create -n symbolic python # Note: Python 3.12 won't work with Gurobi 10.
conda activate symbolic
# Install the xaddpy >= 0.2.5
pip install xaddpy
# Manually install pyRDDLGym >= 2.0.1
cd ~/path/to/pyRDDLGym
git checkout pyRDDLGym-v2-branch
pip install -e .
# (Optional) manually install rddlrepository-v2
# First, make sure you git cloned rddlrepository
# https://github.com/pyrddlgym-project/rddlrepository
cd ~/path/to/rddlrepository
git checkout v2-branch
pip install -e .
# Install Gurobipy (make sure you have a license)
python -m pip install gurobipy
# Finally, install pyRDDLGym_symbolic
cd ~/path/to/pyRDDLGym_symbolic
pip install -e .
```

### Installing pygraphviz

#### Step 1: Installing graphviz

For Ubuntu/Debian users, run the following command.

```
sudo apt-get install graphviz graphviz-dev
```

For Fedora and Red Hat systems, you can do as follows.

```
sudo dnf install graphviz graphviz-devel
```

For Mac users, you can use brew to install graphviz.

```
brew install graphviz
```

Unfortunately, we do not provide support for Windows systems, though you can refer to the pygraphviz documentation for information.

#### Step 2: Installing pygraphviz

Linux systems

```
pip install pygraphviz
```

MacOS

```
python -m pip install \
--global-option=build_ext \
--global-option="-I$(brew --prefix graphviz)/include/" \
--global-option="-L$(brew --prefix graphviz)/lib/" \
pygraphviz
```

Note that due to the default installation location by brew, you need to provide some additional options for pip installation.

## XADD Compilation of CPFs

XADD (eXtended Algebraic Decision Diagram) [Sanner at al., 2011] enables compact representation and operations with symbolic variables and functions. In fact, this data structure can be used to represent CPFs defined in a RDDL domain once it is grounded for a specific RDDL instance.

We use the xaddpy package that provides a Python implementation of XADD (originally implemented in Java). To install the package, simply run the following:

```
pip install xaddpy
```

### XADD compilation of the Wildfire domain

In this article, we are going to walk you through how you can use xaddpy to compile a CPF of a grounded fluent into an XADD node.

For example, let’s look at the Wildfire instance of 3 x 3 locations.

Once the CPFs are grounded for this instance, we can see that the values of the non-fluents will simplify the CPFs. For instance, the neighboring cells of the (x1, y1) location are (x1, y2), (x2, y1), and (x2, y2); hence, burning’(x1, y1) should only depend on the states of these neighbors — plus (x1, y1) itself — but none others.

Once you compile the CPFs of this instance into an XADD, you can actually see this structure easily. In other words, XADD compilation reveals the DBN dependency structures of different variables, which we also explain below.

To run the XADD compilation, we first need to import the domain and instance files. Then, we instantiate the RDDLModelXADD class with the grounded CPFs given by the RDDLGrounder object. The RDDLModelXADD has the method called compile which will compile the pyRDDLGym Expression objects to XADD nodes.

You can find an example run script from pyRDDLGym_symbolic/examples/run_xadd_compilation.py.

A nice way to interpret the resulting XADD may be to visualize it as a graph. You can do this by calling the save_graph method of the XADD object.

```
# This is the object that has compiled XADD nodes
xadd_model = RDDLModelXADD(...)
# RDDLModelXADD.context is the XADD context object that
# handles all operations and stores all the nodes
xadd_model.context.save_graph(
xadd_model.cpfs["burning___x1__y1'"],
file_name="Wildfire/burning___x1__y1"
)
```

Here’s the result:

If the figure is too small to comprehend, you can click the link above to check out the XADD graph. Notice that the leaf nodes contain either a Boolean value or a real value. This is the case when you pass reparam=False to the RDDLModelXADD class constructor. Otherwise, you’ll see the Bernoulli variables in the CPFs reparameterized using uniform random variables. When we don’t reparameterize, the leaf nodes show the Bernoulli probability values.

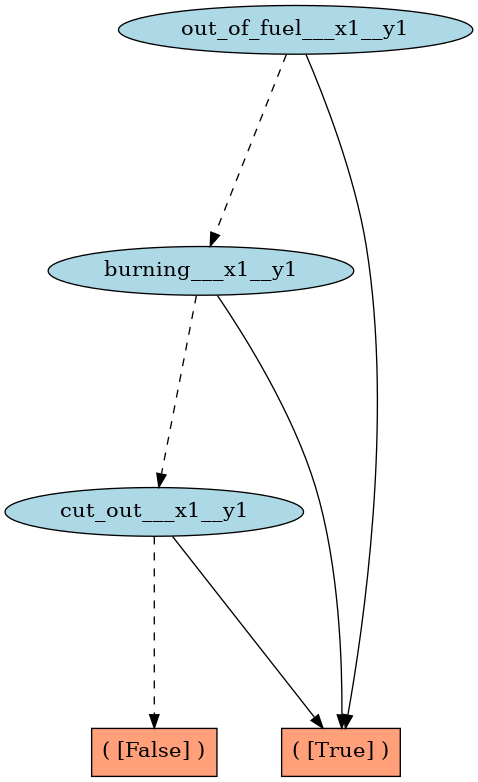

How will the graph look like for out-of-fuel’(x1, y1) variable? Here’s the result of context.save_graph(model_xadd.cpfs[“out-of-fuel_x1_y1’”], file_name=”out_of_fuel_x1_y1”):

Very neat!

### XADD compilation of a domain with mixed continuous / discrete variables

Although the Wildfire example nicely shows how XADD can be used to represent the CPFs of the domain, it only contains Boolean variables. In this part, we will show another example domain that has continuous fluents.

The domain we want to look at is the UAV mixed domain, whose definition is provided here.

If we follow the same procedure described above for the Wildfire domain with the domain name being replaced by ‘UAV/Mixed’, then we can compile the domain/instance in XADD. The overall DBN (dynamic Bayes net) structure of this instance is shown below.

Specifically, let’s print out the CPF of vel’(?a1), which is

```
( [-1 + set_acc___a1 <= 0]
( [1 + set_acc___a1 <= 0]
( [-0.1 + vel___a1 <= 0]
( [0] )
( [-0.1 + vel___a1] )
)
( [set_acc___a1 + 10*vel___a1 <= 0]
( [0] )
( [0.1*set_acc___a1 + vel___a1] )
)
)
( [0.1 + vel___a1 <= 0]
( [0] )
( [0.1 + vel___a1] )
)
)
```

When visualized with pygraphviz, we get the following:

In this case, you can see that the decision nodes have linear inequality expressions instead of a Boolean decision. As for the function values at the leaf nodes, they are also linear expressions. xaddpy package can also handle arbitrary nonlinear decisions and function values using SymEngine/SymPy under the hood.

Now, you can go ahead and use this functionality to analyze a given RDDL instance!

## Visualizing DBNs with XADD

Next, we can now go ahead and draw DBN diagrams of various RDDL domain/instances. As a running example, we show how you can visualize a Wildfire instance as defined in pyRDDLGym_symbolic/examples/files/Wildfire.

If you want to run an example code and follow the steps for better understanding, please take a look at the run_dbn_visualization.py file.

### Instantiate RDDL2Graph object

Firstly, you can instantiate a RDDL2Graph object by specifying the domain, instance, and some other parameters.

```
from pyRDDLGym_symbolic.core.visualizer import RDDL2Graph
domain = 'Wildfire'
domain_file = f'pyRDDLGym_symbolic/examples/files/{domain}/domain.rddl'
instance_file = f'pyRDDLGym_symbolic/examples/files/{domain}/instance0.rddl'
r2g = RDDL2Graph(
domain=domain,
domain_file=domain_file,
instance_file=instance_file,
directed=True,
strict_grouping=True,
)
```

Then, you can visualize the corresponding DBN by calling

```
r2g.save_dbn(file_name='Wildfire')
```

which will save a file named Wildfire_inst_0.pdf to ./tmp/Wildfire. Additionally, you can check the Wildfire_inst_0.txt file which records grounded fluent names and their parents in the DBN.

The output of the function call looks like this.

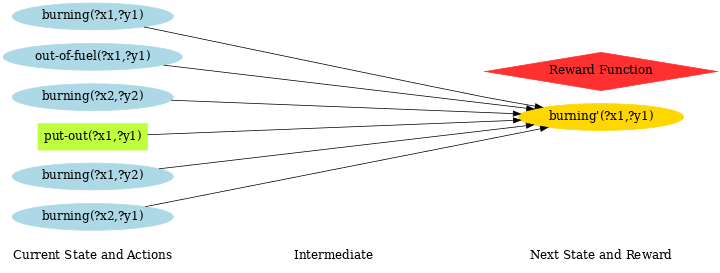

You can also specify a single fluent and/or a ground fluent that you are interested in for visualization. For example,

```
r2g.save_dbn(file_name='Wildfire', fluent='burning', gfluent='x1__y1', file_type='png')
```

will output the following graph:

Nice! You can see from this diagram that the next state transition of the burning state at (x1, y1) only depends on 6 grounded variables (i.e., whether neighboring cells are burning; whether this location is out of fuel; whether the put-out action has been taken).

To give you a taste of another example, here’s the DBN visualization of the Power Generation instance, in which intermediate variables are placed in the middle column:

## Symbolic Dynamic Programming (SDP)

### Value Iteration (VI)

With the run_vi.py file, you can run a value iteration solver.

Here, we provide a detailed dissection of the run script.

First, we compile a given RDDL domain/instance to XADD. This step follows the same procedure as in the examples above, so we skip it here.

#### Constructing the MDP problem with the associated XADD model

```
mdp_parser = Parser()
mdp = mdp_parser.parse(
xadd_model,
xadd_model.discount,
concurrency=rddl_ast.instance.max_nondef_actions,
is_linear=args.is_linear,
include_noop=not args.skip_noop,
is_vi=True,
)
```

Then, in lines 46 - 54, we instantiate an MDPParser object that has the parse method, which interprets the XADD RDDL model and construct some necessary attributes, like CPFs and such.

Some important operations that happen within the parser are as follows:

**Bound analysis on continuous variables (lines 50-57 and lines 102-105):**

```
# Configure the bounds of continuous states.
cont_s_vars = set()
for s in model.state_fluents:
if model.variable_ranges[s] != 'real':
continue
cont_s_vars.add(model.ns[s])
cont_state_bounds = self.configure_bounds(mdp, model.invariants, cont_s_vars)
mdp.cont_state_bounds = cont_state_bounds
...
...
# Configure the bounds of continuous actions.
if len(mdp.cont_a_vars) > 0:
cont_action_bounds = self.configure_bounds(mdp, model.preconditions, mdp.cont_a_vars)
mdp.cont_action_bounds = cont_action_bounds
```

Here, the parser has a method called configure_bounds in which we perform the analysis on bounds of continuous variables. Specifically, the bound information has to be provided in state-invariants and action-preconditions blocks of the original RDDL domain file. If no bounds are provided for a variable, we assume [-inf, inf] as its bounds.

Once configured, this bound information is then updated to the XADD context object such that each continuous symbolic variable is associated with its upper and lower bounds.

**Handling of concurrent boolean actions (lines 75 - 90)**

```
# Add concurrent actions for Boolean actions.
if is_vi:
# Need to consider all combinations of boolean actions.
# Note: there's always an implicit no-op action with which
# none of the boolean actions are set to True.
total_bool_actions = tuple(
_truncated_powerset(
bool_actions,
mdp.max_allowed_actions,
include_noop=include_noop,
))
for actions in total_bool_actions:
names = tuple(a.name for a in actions)
symbols = tuple(a.symbol for a in actions)
action = BActions(names, symbols, model)
mdp.add_action(action)
```

This part is where we handle concurrent actions, specifically for Value Iteration. Here we have a few modeling assumptions. First, continuous actions will always be concurrent, so we only specifically handle concurrent Boolean actions. Second, we provide an option to either use or not use a no-op action, which sets all Boolean action values to False.

Now, let’s say we have 2 Boolean actions: move___a1 and pick___a1. When the concurrency is set to 1 and we allow the noop action, then we’ll have the following Boolean actions:

noop (i.e., {move___a1: False, pick___a1: False})

{move___a1: True, pick___a1: False}

{move___a1: False, pick___a1: True}

On the other hand, if the concurrency is set to 2, then we will have the following concurrent Boolean actions:

noop (i.e., {move___a1: False, pick___a1: False})

{move___a1: True, pick___a1: False}

{move___a1: False, pick___a1: True}

{move___a1: True, pick___a1: True}

That is, the concurrency value specifies the maximum number of Boolean actions that can be taken at each time step, so we should consider all possible combinations, which is done by the _truncated_powerset helper function.

We define a class BActions that can handle any of these concurrent actions. More importantly, the class implements a restrict method in which we restrict a given XADD with the associated action values.

Constructing the full CPFs for Boolean next state and interm variables (line 114)

By calling mdp.update(is_vi=is_vi), we update the CPFs of Boolean next state and interm variables to fully consider P(b’=0|…). This is a necessary step as in the RDDL file, we have only specified the probability of a Boolean variable being True. Also, the update method links updated CPFs with each action.

#### Solving the MDP

Finally, we call vi_solver.solve() which will perform SDP to obtain the optimal symbolic value function.

Notice that the solve method is shared by the ValueIteration and PolicyEvaluation solvers; hence, it’s defined in base.py. The method will return the integer ID of the optimal value function at a set iteration number.

### Policy Evaluation (PE)

With the run_pe.py file, you can run a policy evaluation solver.

The script is exactly the same as run_vi.py until the XADD RDDL model compilation is done. Then, a slight difference of PE from VI is what we pass to the MDPParser.parse function.

```
mdp = mdp_parser.parse(
xadd_model,
xadd_model.discount,
concurrency=rddl_ast.instance.max_nondef_actions,
is_linear=args.is_linear,
is_vi=False,
)
```

In PE, we do not have to specify the maximum concurrency value to the parser as that should be implicitly determined by the given policy. Instead, we set is_vi=False such that we do not create BActions objects.

Then, in lines 56 - 62, we instantiate a PolicyParser object and parse the policy provided in a json format, specified by the argument –policy_fpath. An example policy json file looks like the following (p1.json):

```
{
"action-fluents": ["a"],
"a": "pyRDDLGym_symbolic/examples/files/RobotLinear_1D/policy/a.xadd"
}
```

A policy json file should have the following field:

“action-fluents”: a list of grounded action variable names.

Then, it should be followed by “action-name”: “file path” pairs for all actions specified in “action-fluents”. This json file should specify the file path of each and every action fluent of a given problem; otherwise, an assertion error will occur from the parser.

The value of one action variable points to the file path where the XADD of that action is defined. The PolicyParser will read in the XADD and perform some checks (e.g., type and dependency checks). Check out the comments in the policy_parser.py file for more detailed information.

#### Assertion for concurrency

The PolicyParser class implements an assertion that in the entire state space no more than the set concurrency number of Boolean actions can be set to True. Check out the _assert_concurrency method in lines 153 - 175 of policy_parser.py.

#### Substitution of the policy into CPFs and reward function

A unique step in PE is where we substitute in the policy XADDs into the CPFs and the reward function. See lines 20 - 58 of pe.py. Note how we handle the continuous and Boolean action variables differently.

Once all the CPFs and reward function are restricted with the given policy XADDs, the remaining steps are identical to VI, except that we do not have to iterate over actions as they have all been already incorporated into CPFs.
